RC RIGS · RC1200L
High-capacity RC exploration rig
RC1200L Reverse Circulation Drilling Rig

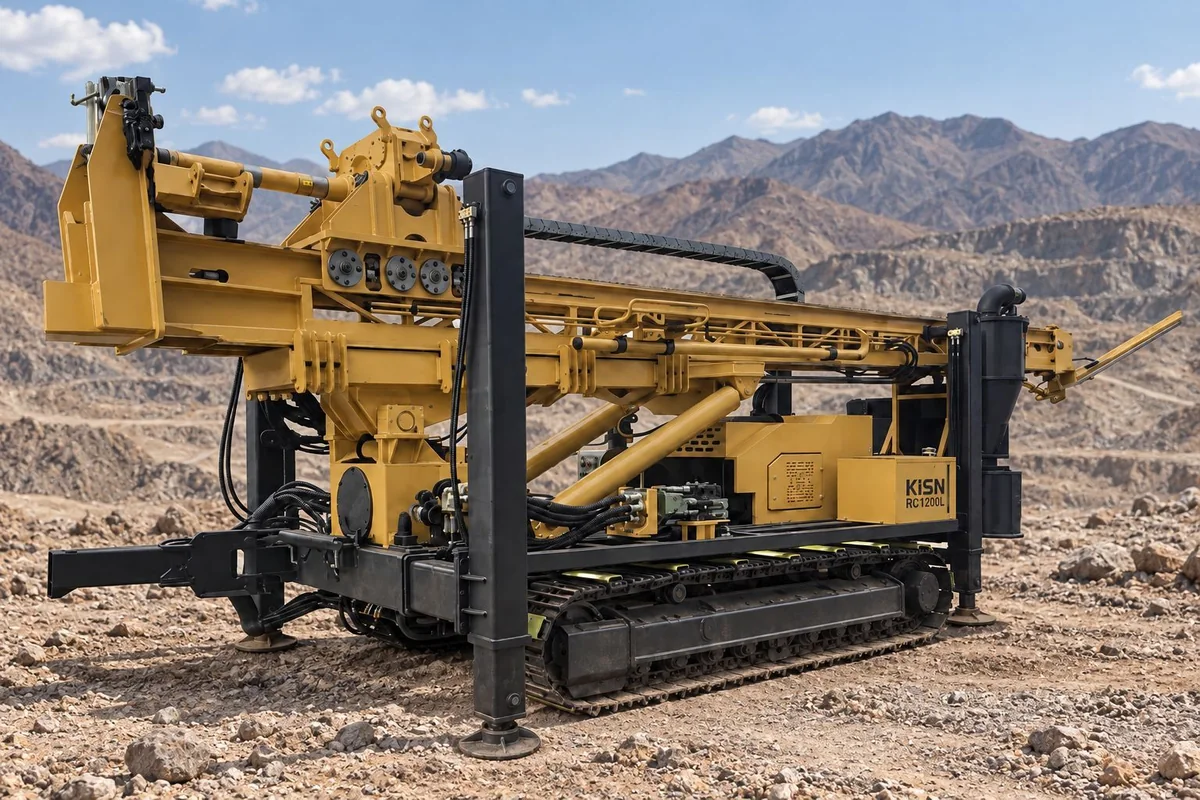

RC1200L catalogue product image. Final configuration is confirmed for your order.
Overview
A high-capacity RC platform for deeper exploration targets and larger drilling configurations. The catalogue lists a 1,000 m maximum depth, 570 kN pull force and a Weichai 220 kW engine, with a Cummins 360 model option.
Specifications
Product Details
High-capacity RC exploration rig
A high-capacity RC platform for deeper exploration targets and larger drilling configurations. The catalogue lists a 1,000 m maximum depth, 570 kN pull force and a Weichai 220 kW engine, with a Cummins 360 model option.
Match the rig, tooling and air supply
The catalogue recommends RC45-RC160 hammers for the RC1200L. Send your target hole diameter and depth, formation, rod connection requirements and compressor pressure and flow so the equipment package can be checked together.
Prepare your equipment request
Specify the drill rods, hammers, bits and initial wear-parts package you need with the rig. Include delivery country, quantity and any commissioning or technical-support requirements in your enquiry.
Technical Data
| Technical parameter | RC1200L |
|---|---|
| Hole diameter | 105-800 mm |
| Maximum depth | 1,000 m |
| Air pressure | 1.6-8.0 MPa |
| Air consumption | 16-96 m³/min |
| Rock drillability | F4-F22 |
| Drill rod | 6 m / Ø127 or Ø146 mm |
| Drilling angle | 45°-90° |
| Feed / pull force | 130 / 570 kN |
| Rotary torque | 24,000 / 12,000 N·m |
| Rotary speed | 0-86 / 0-172 rpm |
| Engine | Weichai 220 kW / optional Cummins 360 model |
| Hydraulic oil tank | 350 L |
| Winch | 25 kN |
| Travel speed / gradeability | 6.4 km/h / 21° |
| Dimensions | 11,500 × 2,250 × 3,400 mm |
| Operating weight | 23,000 kg |
| Recommended hammer | RC45-RC160 |
Specifications follow the KISN 2026 RC catalogue. Maximum depth and diameter ranges are selection references for different conditions and configurations; confirm project capacity against formation, air supply and tooling. Final configuration and scope of supply are confirmed for each order.
Frequently Asked Questions
What is the maximum drilling depth of the RC1200L?
The catalogue maximum is 1,000 m. Achievable depth depends on hole diameter, formation, tooling and air supply, and must be confirmed for the project.
Are the hammer, rods and compressor included?
The scope of supply is confirmed in the quotation. List the hammer, bits, rods, compressor and spares you require; they are not assumed to be included with every rig.
What information should I send for a quotation?
Send the target hole diameter, depth, formation, compressor pressure and flow, drill rod requirements, quantity and delivery country.
