RC RIGS · RC800A
RC rig with automatic rod handling
RC800A Reverse Circulation Drilling Rig

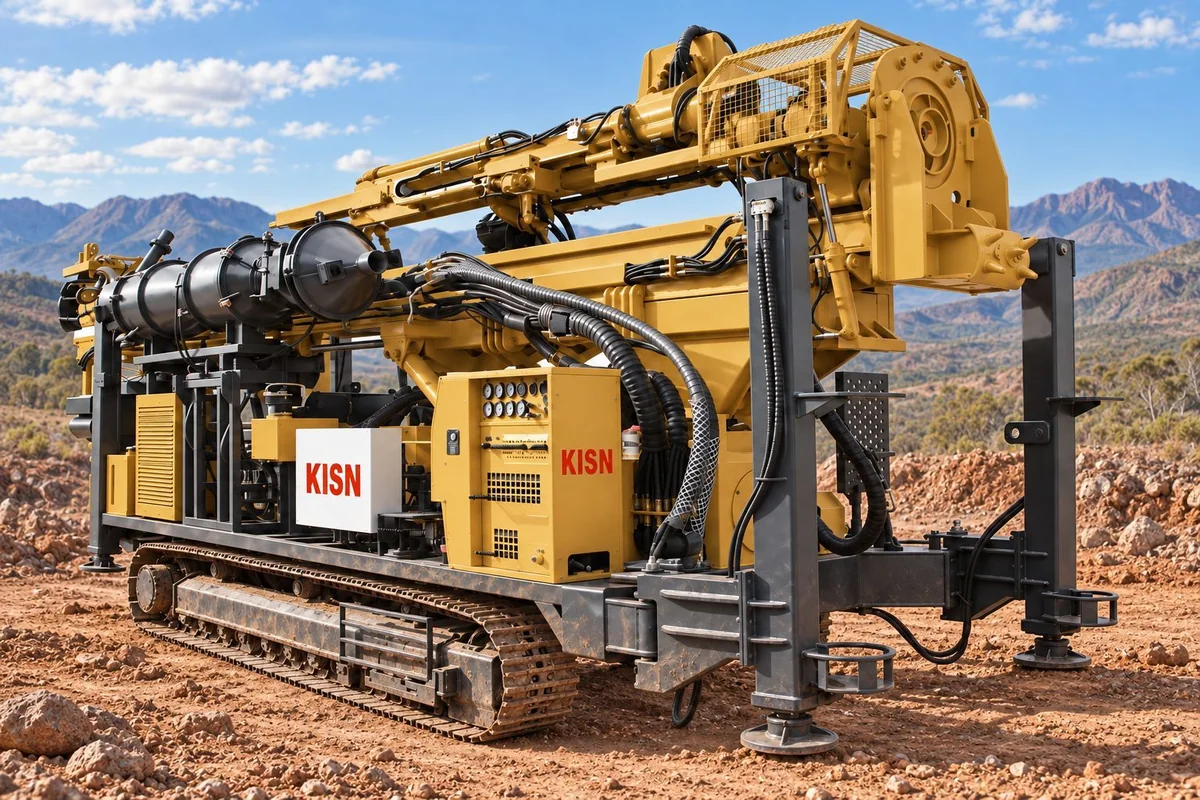

RC800A catalogue product image. Final configuration is confirmed for your order.
Overview
An RC800 configuration with automatic rod handling to reduce manual handling at the drill floor. The catalogue lists a 600 m maximum depth and a rack for 20 rods of Ø114 × 6,000 mm.
Specifications
Product Details
RC rig with automatic rod handling
An RC800 configuration with automatic rod handling to reduce manual handling at the drill floor. The catalogue lists a 600 m maximum depth and a rack for 20 rods of Ø114 × 6,000 mm.
Match the rig, tooling and air supply
The catalogue recommends RC45 / RC55 hammers for the RC800A. Send your target hole diameter and depth, formation, rod connection requirements and compressor pressure and flow so the equipment package can be checked together.
Prepare your equipment request
Specify the drill rods, hammers, bits and initial wear-parts package you need with the rig. Include delivery country, quantity and any commissioning or technical-support requirements in your enquiry.
Technical Data
| Technical parameter | RC800A |
|---|---|
| Hole diameter | 104-550 mm |
| Maximum depth | 600 m |
| Air pressure | 1.6-8.0 MPa |
| Air consumption | 16-96 m³/min |
| Rock drillability | F4-F22 |
| Drill rod | 6 m / Ø114 or Ø127 mm |
| Automatic rod handling | Ø89-200 mm |
| Rod rack | Ø114 × 6,000 mm / 20 rods |
| Feed / pull force | 110 / 470 kN |
| Rotary torque | 18,000 / 9,000 N·m |
| Rotary speed | 0-70 / 0-140 rpm |
| Engine | Cummins 6CTA8.3-C240 / 179 kW |
| Hydraulic oil tank | 350 L |
| Winch | 25 kN |
| Travel speed / gradeability | 5 km/h / 21° |
| Dimensions | 10,500 × 2,750 × 4,680 mm |
| Operating weight | 20,000 kg |
| Recommended hammer | RC45 / RC55 |
Specifications follow the KISN 2026 RC catalogue. Maximum depth and diameter ranges are selection references for different conditions and configurations; confirm project capacity against formation, air supply and tooling. Final configuration and scope of supply are confirmed for each order.
Frequently Asked Questions
What is the maximum drilling depth of the RC800A?
The catalogue maximum is 600 m. Achievable depth depends on hole diameter, formation, tooling and air supply, and must be confirmed for the project.
Are the hammer, rods and compressor included?
The scope of supply is confirmed in the quotation. List the hammer, bits, rods, compressor and spares you require; they are not assumed to be included with every rig.
What rods can the automatic system handle?
The catalogue lists automatic rod handling for Ø89-200 mm and a rack for 20 rods of Ø114 × 6,000 mm. Confirm connection details and the final package during selection.
